Compact But Powerful
Bench-top design with direct chemiluminescence technology, strong precision, high throughput, and a first-result time of 10 minutes.
Products
Focused diagnostic technology for high-performance laboratories.
Skandix presents a growing range of diagnostic solutions for laboratories and healthcare institutions, with more products set to be introduced as the portfolio expands.
Chemiluminescence (CLIA)

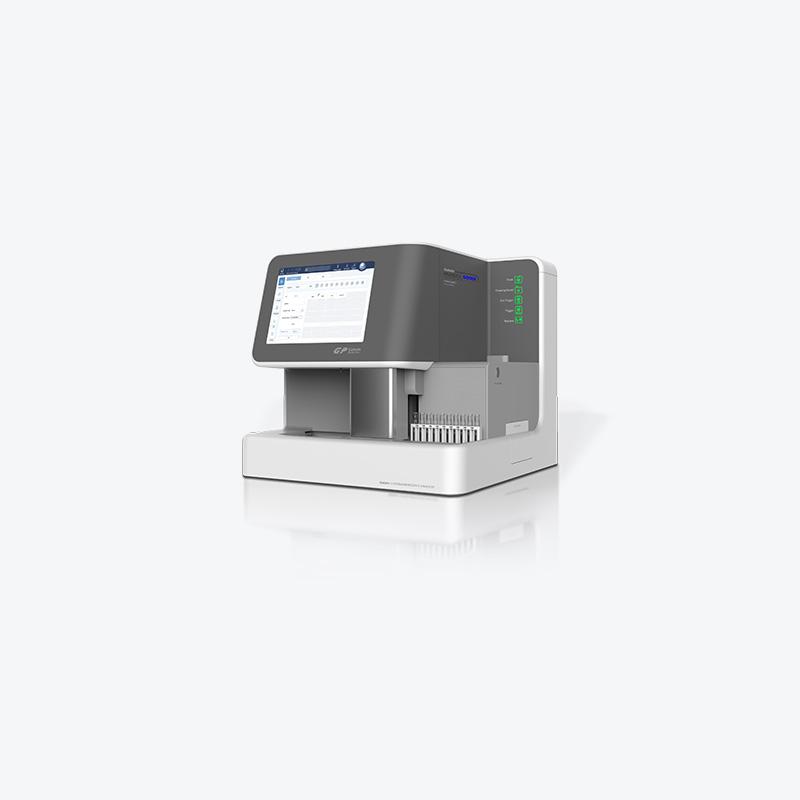

MAGICL 6000i Chemiluminescence Immunoassay Analyzer
A compact, high-productivity chemiluminescence immunoassay analyzer designed for laboratories that need speed, sensitivity, and dependable day-to-day performance in a smaller footprint.
- Up to 200 tests per hour throughput
- First result in as fast as 10 minutes
- 24 reagent positions and 50 sample positions
- Direct chemiluminescence methodology with strong sensitivity

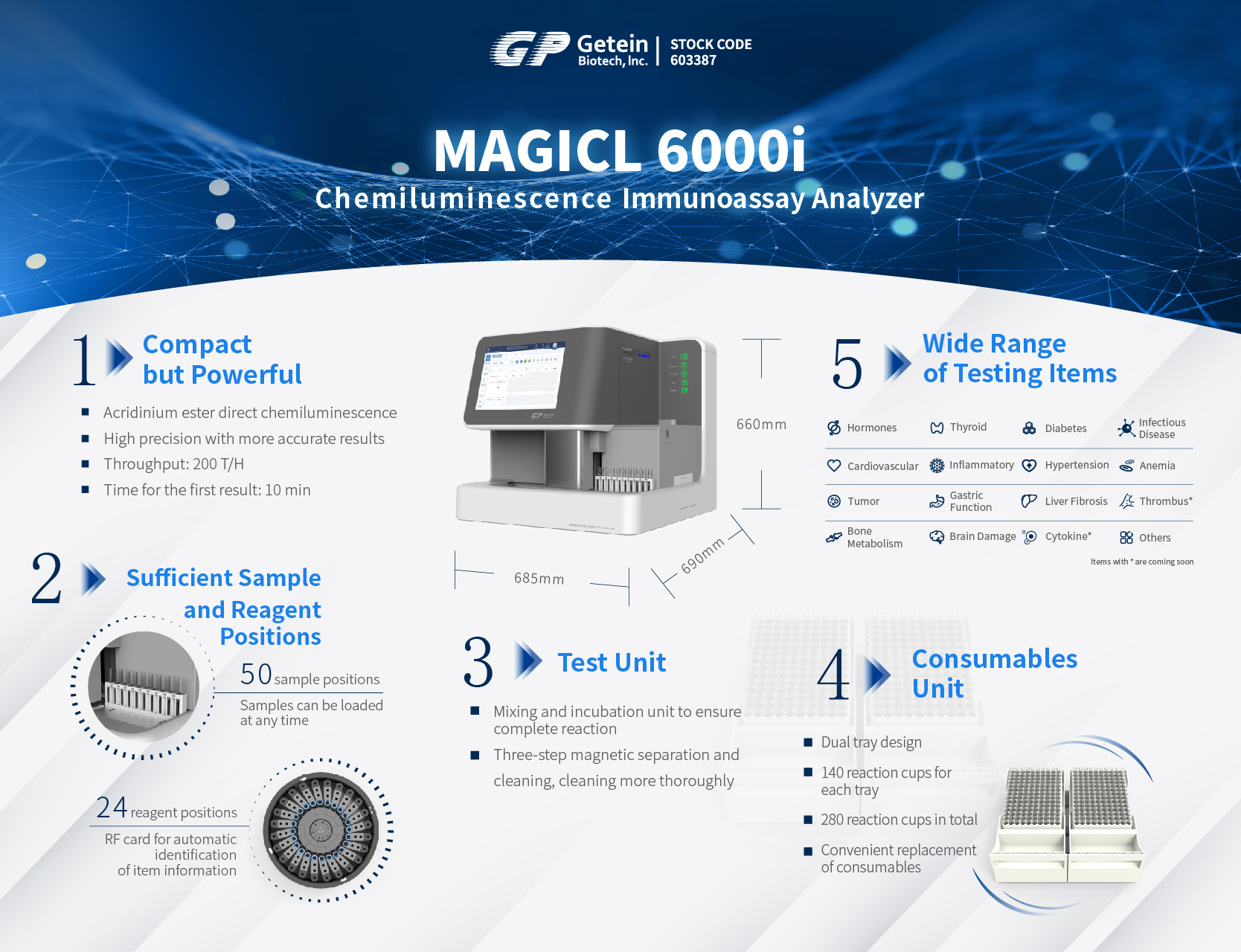

Key Features
Designed for compact efficiency, continuous workflow, and dependable analytical performance.
The MAGICL 6000i combines bench-top practicality with strong throughput, fast first-result timing, and a workflow-friendly configuration for modern laboratories.
Flexible Sample And Reagent Handling
Supports 50 sample positions with loading at any time, plus 24 reagent positions with automatic identification.
Integrated Test Unit
Mixing, incubation, magnetic separation, and washing are combined into one efficient testing workflow.
Dual Consumable Trays
Two independent consumable trays with 140 reaction cups per tray support smoother replacement and workflow continuity.
Wide Test Menu
Covers thyroid, diabetes, infectious disease, cardiovascular, anemia, tumor, liver fibrosis, cytokines, and more.
Smart Software Experience
Android-based operation with real-time monitoring of reaction status, consumables, and reagent information.

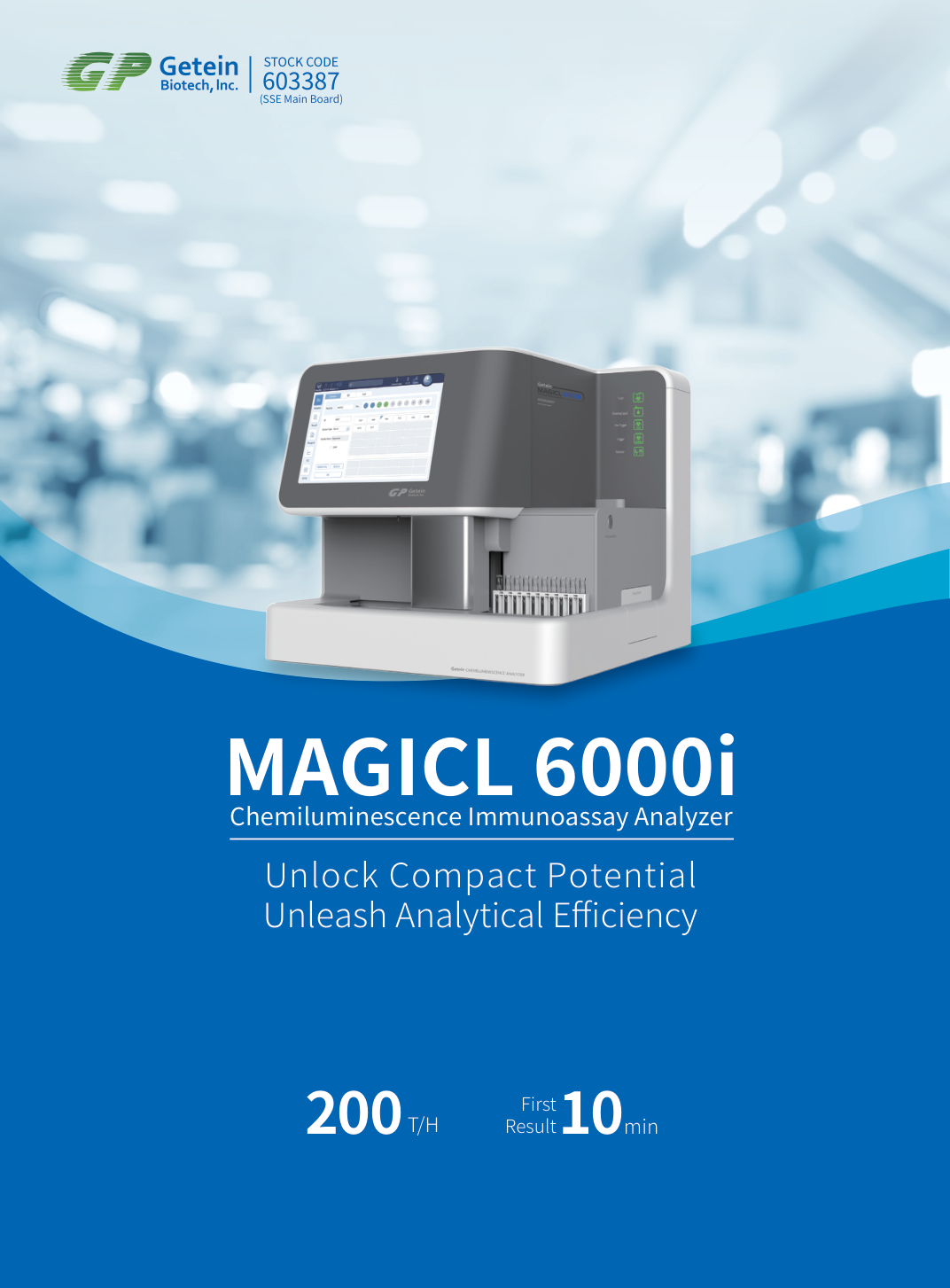

Product Brochure
Browse the MAGICL 6000i brochure page by page.
Use the left and right controls to turn through the brochure like a compact product book.
Technical Specifications
Structured specification summary for the current product offering.
Test PrincipleAcridinium ester direct chemiluminescence
ThroughputUp to 200 T/H
First ResultFastest time: 10 min
Reagent Positions24
Sample Positions50
Sample TypesSerum, plasma, urine, fingertip blood
STAT ModeSupported
Display12-inch LCD full touch screen
Sensing FunctionsLiquid level detection, residual monitoring, anti-collision, anti-blocking
Magnetic Separation3-step magnetic separation and 3-step washing
Dimensions685 mm × 690 mm × 660 mm
Weight80 kg
